MixAir Ornamental OB1 Weighted Pond Diffuser Aerator Air Stone

Orb-3 Aeration Diffuser Ballast

Name: Orb-3 Aeration Diffuser Ballast
Brand: MixAir
SKU: W734-G9K-1E
Price: 50.74 USD
Availability: InStock

UPC: 845738002830

SKU: W734-G9K-1E

Type: Aeration Accessories

$50.74

Orb-3 ballasts stabilize diffusers and allow for flexible diffuser placement without the difficulty of weighting the diffuser.

The hollow base can be filled with sand or gravel eliminating the need for bricks and straps.

Choose between Small, Medium, or Large Ballast depending on diffuser choice and airflow.

Size

Small

Medium

Large

Use for:

Aeration
Stabilizes Diffuser

Features

Stabilizes diffuser
Allows for flexible diffuser placement
Variable weight
Built-in check valve (large base only)

Specification

Construction

Small Ballast: Schedule 40/80 PVC, UV inhibited
Medium Ballast: Schedule 40/80 PVC, UV inhibited
Large Ballast: Black Poly

Size

Small Ballast: 1/2" FNPT
Medium Ballast: 1/2" FNPT
Large Ballast: 1/2" FNPT and 3/4" FNPT Included. (dims 19.25” x 15.5” x 5.5”)

Warranty

3 year

FAQ

What comes in the Orb-3 Large Ballast box? + -

1 - Hollow Ballast With Cap
1 - 3/4" MNPT Hose Barb Built-In Check Valve
1 - SS Hose Clamp
2 - Padded Hose Clamps (17.5mm; 25.5mm)
1 - 3/4" x 1/2" MNPT Nipple
1 - Nut
1 - Bolt (10mm)
2 - Washers

Description

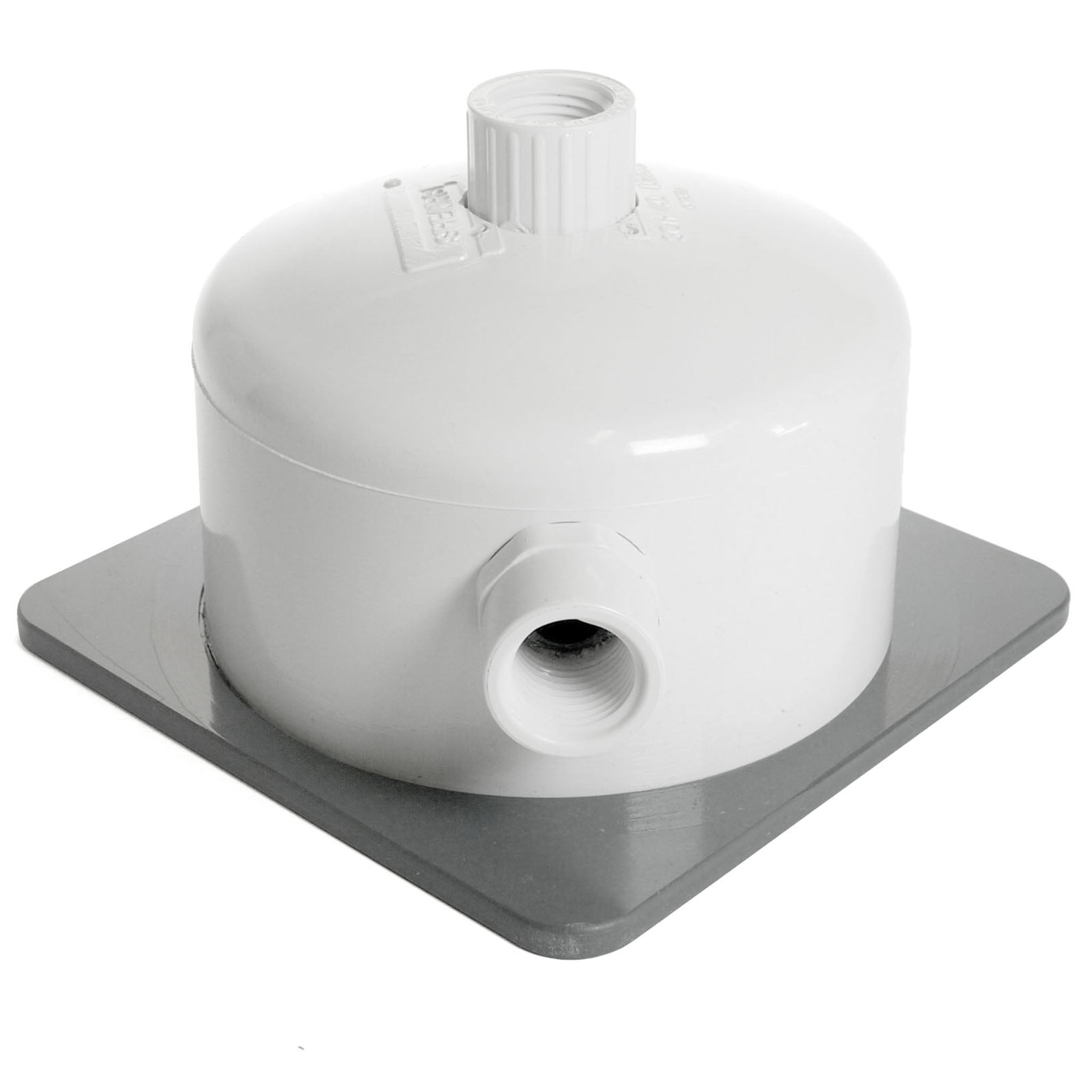

Small & Medium Base

Base can be used with 3/8″ or 1/2″ tubing (adapter included)

1/2" FNPT located at the top; connect diffuser with ½” MNPT adapter (included)

Recommended for smaller Orb-3 diffusers and single discs or tubes

Check valve not included. Tagline recommended

Large Base Only

Strain relief clamp (included) to secure tubing onto base (Large Base Only)

Inlet air barb fitting with built-in check valve (included)

Base can be used with 3/8″, 1/2″ or 5/8″ tubing

3/4″ FNPT located at the top; connect diffuser ½” Barb or ½” MNPT adapter (included)

Recommended for the Orb-3 TB16 diffuser, 2-4 disc or tube assemblies
